In modern industries, homes, and infrastructure systems, the ability to measure how much fluid is moving through a pipe is not just useful—it’s essential. Whether it’s water flowing into a building, fuel moving through an engine, or chemicals being mixed in a factory, accurate fluid measurement ensures safety, efficiency, and quality control. That’s where flow meters come in. These devices help us monitor and regulate the movement of liquids and gases, often with impressive accuracy.
This guide is designed for beginners who want to understand what flow meters are, how they work, the different types available, and how to choose the right one for a specific application.
A flow meter is a device used to measure the flow rate of a liquid or gas as it moves through a pipe or channel. Flow rate can be measured in terms of volume (like liters per minute) or mass (like kilograms per hour). Flow meters are used in countless settings—from residential water supply systems to massive oil pipelines and laboratory experiments.
The basic purpose of a flow meter is to give operators information about how much fluid is being transferred, how fast it's moving, and sometimes, even its temperature and pressure. This helps in regulating systems, avoiding waste, reducing costs, and improving performance.
Accurate measurement plays a crucial role in process efficiency and safety. In a manufacturing facility, for example, if too much or too little of a component is added, it can ruin an entire batch of product. In water treatment plants, knowing how much water is being filtered or discharged is key to regulatory compliance. Even in your home, accurate water or gas flow measurements help you get fair utility bills.
In short, flow meters protect systems, ensure regulatory standards are met, improve output quality, and help monitor energy usage and sustainability.
Different flow meters work using different scientific principles. However, most of them are based on a few common techniques:
Mechanical movement: Some meters rely on a spinning part, like a turbine, that rotates with fluid flow. The speed of rotation helps determine flow rate.
Pressure difference: Some meters measure the pressure difference between two points in a pipe and calculate flow based on that.
Electromagnetic properties: Meters using this method measure voltage generated by conductive fluids moving through a magnetic field.
Ultrasonic waves: Ultrasonic flow meters use sound waves. By measuring how these waves change as they pass through the flowing liquid, the flow rate can be calculated.
Understanding the working principle behind a flow meter helps users choose the right one for their specific task.
While there are many types of flow meters, here are some of the most commonly used, especially in industrial and residential settings:
These work like mini windmills placed inside the pipe. As fluid flows, it spins a rotor. The faster the fluid flows, the faster the rotor turns. Sensors track this motion and convert it into flow rate data.
Advantages: Simple design, good for clean and steady fluids.
Limitations: Not suitable for dirty or viscous fluids that could jam the turbine.

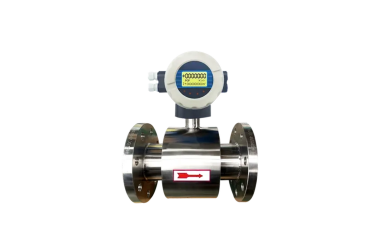

These use a magnetic field and the conductive nature of certain fluids to measure flow. When a conductive liquid passes through the magnetic field, it creates a voltage. The voltage is directly related to the speed of the liquid.
Advantages: No moving parts, excellent for wastewater and slurries.
Limitations: Can’t measure non-conductive fluids like oils or gases.
These devices send ultrasonic signals across the flow and calculate how much time the signal takes to travel. Any change in the travel time, caused by fluid movement, helps determine flow rate.
Advantages: Works well for both clean and dirty fluids.
Limitations: Expensive, sensitive to air bubbles and pipe alignment.
These trap pockets of fluid and count them as they pass through. Think of them as a fluid counter—they measure the actual volume of fluid, rather than just estimating based on speed.
Advantages: Very accurate at low flow rates.
Limitations: Can be bulky and less suited for high-flow or high-pressure environments.
These measure the pressure drop over a restriction in the pipe—like an orifice plate—and use that to estimate flow rate. The higher the pressure drop, the faster the flow.
Advantages: Widely used and understood.
Limitations: Not always accurate for low flow rates, requires pressure recovery downstream.
Flow meters are used in various industries, and the choice of device often depends on the nature of the fluid and the environment. Some typical applications include:
Water supply systems: For residential and municipal water monitoring.
Oil and gas pipelines: To track oil and fuel delivery in mass.
Food and beverage production: Measuring ingredients in processing.
Pharmaceutical manufacturing: Ensuring precise mixing of chemicals.
HVAC systems: Regulating water or refrigerant flows for cooling and heating.
Chemical processing: Maintaining correct chemical proportions for reactions.
Each industry demands specific features—such as resistance to corrosion, ability to handle extreme temperatures, or sanitary designs for hygienic applications.
Choosing the right flow meter isn’t just about price or size. Several factors must be considered:
Type of fluid: Is it clean water, thick oil, or gas?
Flow rate range: How fast and how much fluid needs to be measured?
Pipe size: Will it be installed on a small or large pipe?
Accuracy requirements: Are exact numbers needed, or just estimates?
Installation conditions: Will the meter be used in a tight space, outdoors, or in a corrosive environment?
Budget and maintenance: Does the device need frequent calibration or is it a long-term solution?
These factors will help narrow down the best flow meter for your application.
Even the most advanced flow meter can give poor results if not installed or used correctly. Here are a few general tips:
Always follow the manufacturer’s installation guidelines, especially regarding pipe straight lengths before and after the meter.
Avoid placing meters near bends, pumps, or valves, which can disturb fluid flow and cause inaccurate readings.
Keep the device clean and regularly inspect for clogging or buildup, especially in mechanical or displacement meters.
Calibrate your flow meter periodically, particularly in critical applications where accuracy is essential.
Proper usage ensures long service life, better accuracy, and reduced downtime.
Flow meters are not just tools for specialists—they’re important instruments that support everyday processes across homes, cities, and industries. From ensuring you get the correct amount of water to enabling precise control in chemical manufacturing, they help maintain smooth, safe, and efficient systems.
Understanding how flow meters work, their types, and their applications allows users to make informed decisions. Whether you're a facility manager, engineer, or curious homeowner, knowing the basics of fluid measurement can lead to better system design and smarter resource management.
So the next time you turn on a faucet, fuel up a car, or wonder how industrial plants maintain such precision, remember—there’s probably a flow meter working quietly behind the scenes.
